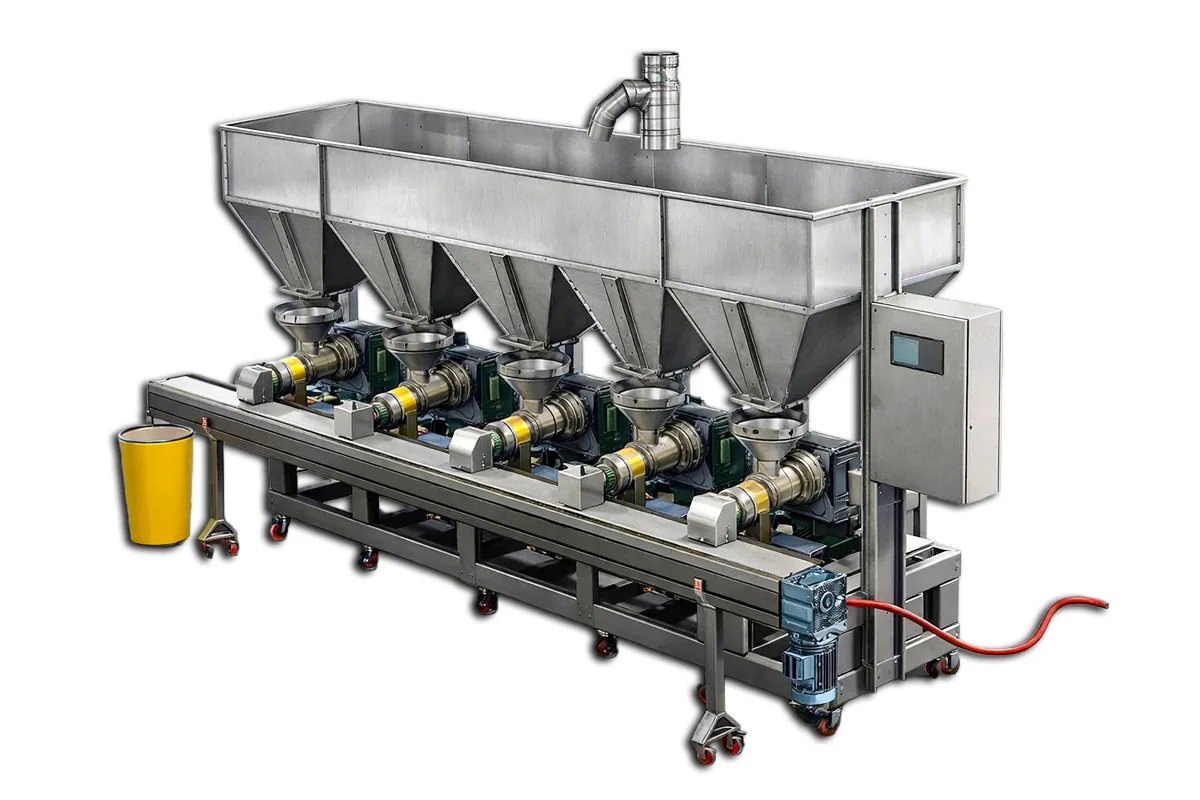

Cocoa Butter Press Plant CBPLANT-5
The CBPLANT-5 is built for entry-level industrial cocoa butter production.
It suits pilot plants and growing manufacturers that need steady output.
The system includes 5 mechanical cold press units.
It runs continuously and supports 24/7 production.
No hydraulic system is required.
Cocoa nib feeding is fully automated.
Material flow stays stable during operation.
Cocoa butter is collected in a clean and controlled way.
Description
Cocoa Butter Press Plant | CBPLANT-5
The CBPLANT-5 is built for entry-level industrial cocoa butter production.
It suits pilot plants and growing manufacturers that need steady output.
The system includes 5 mechanical cold press units.
It runs continuously and supports 24/7 production.
No hydraulic system is required.
Cocoa nib feeding is fully automated.
Material flow stays stable during operation.
Cocoa butter is collected in a clean and controlled way.
Processing capacity is 25–40 kg per hour.
Daily output reaches 600–960 kg in continuous use.
The system includes a heating unit and digital control panel.
All functions are managed from one interface.
Operation is simple and easy to follow.
A screw feeding system supplies cocoa nibs to the presses.
Press cake is discharged through a central outlet.
This keeps the working area clean and organized.
The machine produces pure cocoa butter directly from nibs.
No chemical process is used.
The CBPLANT-5 is a practical step into industrial production.
It provides stable output with a simple and reliable system.
Advanced Pressing System
The CBP Series ensures efficient cocoa butter and cake separation through screw press technology, controlled heating, hygienic construction, and reliable industrial performance.
| Technical Specifications | CBP-1500 |
|---|---|
| Motor Power | 1500 Watt |
| Power Supply | 220–240 Volt / Single-phase |
| Heater | 600 Watt |
| Hourly Energy Consumption | 400–950 Watt |
| Processing Capacity (Cacao Nibs) | 7–10 kg/hour |
| Maximum Cocoa Butter Yield Capacity | 5–8 kg/hour |
| Residue Oil in Cake | ≤ 6% |
| Dimensions | |
| Length | 84 cm |
| Width | 26 cm |
| Height | 55 cm |
| Weight | 65 kg |
| Cargo Specifications | |
| Length | 100 cm |
| Width | 40 cm |
| Height | 70 cm |
| Weight (Gross) | 80 kg |
| Packaging Method | Inside a wooden crate |
| HS Code | 847920000019 |
Maximum Yield
Low residual oil in cake ensures
high butter yield.
Optimized Output
Processes up to 10 kilograms
cocoa nibs hourly.
Reliable Power
1500W single-phase motor supports continuous press operation.
videos.
Machine Overview Video.
These videos shows the CBP-1500 in operation, highlighting its compact structure, mechanical screw press system, and stable cocoa butter extraction process in a real working environment.
